SG(B)10, SG(B)11 non-encapsulated dry type transformer
- Dustproof and damp-proof: the appearance is coated with special waterproof materials to form a dustproof, damp-proof and anti-pollution special protective layer.
- Small size and light weight: DuPont NOMEX paper is taken as the main insulating material, the volume and weight can be reduced by 20% compared with epoxy casting type transformer in same capacity.
- Strong cooling capacity: multi-layer cylindrical, longitudinal multi-air-channel structure, better in cooling effect compared with epoxy casting transformer
- Environment protection: Reliable, free of combustion-supporting resin, non-toxic, able to be decomposed and recycled, and pollution-free
- Especially applicable to the areas with high temperature, humidity and dirt in China such as hydropower plant, thermal power plant, steel works, chemical engineering and mine.
Product Details
DOWNLOAD
-

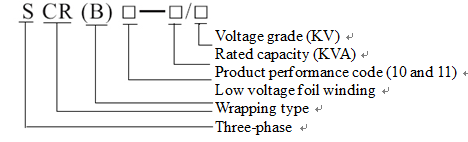

Model Description
-
Features
- Dustproof and damp-proof: the appearance is coated with special waterproof materials to form a dustproof, damp-proof and anti-pollution special protective layer.
- Small size and light weight: DuPont NOMEX paper is taken as the main insulating material, the volume and weight can be reduced by 20% compared with epoxy casting type transformer in same capacity.
- Strong cooling capacity: multi-layer cylindrical, longitudinal multi-air-channel structure, better in cooling effect compared with epoxy casting transformer
- Environment protection: Reliable, free of combustion-supporting resin, non-toxic, able to be decomposed and recycled, and pollution-free
-
Conditions of Use
- Altitude: ≤1,000m; -25℃≤ambient temperature≤40℃, indoor type. Keep well-ventilated for the transformer with air self-cooling and forced air cooling type. When the transformer is installed in basement or other environments with poor ventilation condition, increase cooling and ventilation device. Protection grade: IP00, IP20 and IP23.
- When the altitude is ＞1,000m or the ambient temperature is higher than 40℃ or lower than -25℃, adjust the rated value of product according to the requirements of GB1094.11 Power transformers-Part 11: Dry-type transformers.
-
Technical Parameters -
Technical parameters of SCR(B)10-30～2500/10 series non-encapsulated dry type transformer
-
Rated capacity kVA
Voltage combinations (kV)
Grade mark of connection group
No-load loss (W)
Load loss (W)
Short-circuit impedance (%)
High voltage (kV)
Tap (%)
Low voltage (kV)
30
6 6.3 6.6 10 10.5 11
±2.5
±5
0.4
Dyn11 Yyn0
190
760
4.0
50
270
1070
80
370
1480
100
400
1690
125
470
1980
160
540
2280
200
±5 ±2×2.5
620
2710
250
720
2960
315
880
3730
400
980
4280
500
1160
5230
630
1340
6290
630
1300
6400
6.0
800
1520
7460
1000
1770
8760
1250
2090
10300
1600
2450
12500
2000
3050
15500
2500
3600
18400
-
Technical parameters of SCR(B)11-30～2500/10 series non-encapsulated dry type transformer
-
Rated capacity kVA
Voltage combinations (kV)
Grade mark of connection group
No-load loss (W)
Load loss (W)
Short-circuit impedance (%)
High voltage (kV)
Tap (%)
Low voltage (kV)
30
6 6.3 6.6 10 10.5 11
±2.5
±5
0.4
Dyn11 Yyn0
170
760
4.0
50
240
1070
80
330
1480
100
360
1690
125
420
1980
160
480
2280
200
±5 ±2×2.5
550
2710
250
640
2960
315
790
3730
400
880
4280
500
1040
5230
630
1200
6290
630
1170
6400
6.0
800
1360
7460
1000
1590
8760
1250
1880
10300
1600
2200
12500
2000
2740
15500
2500
3240
18400
